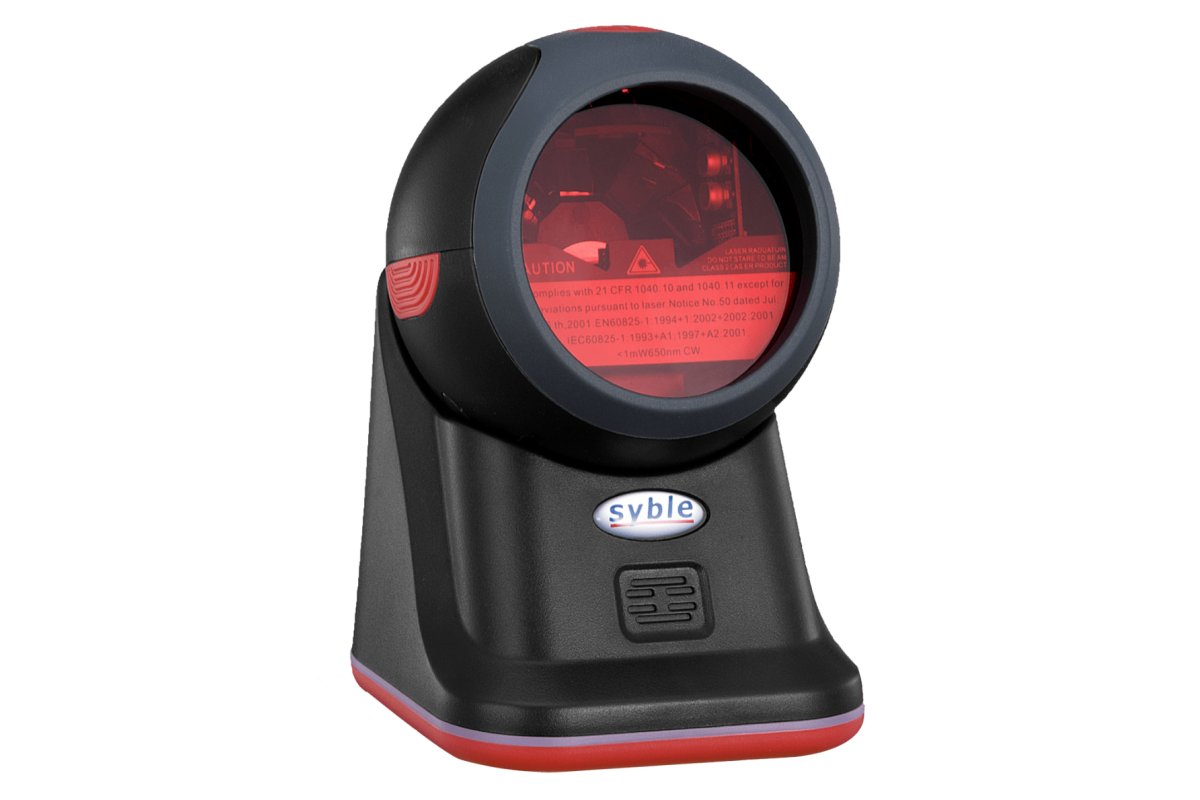

Syble countertop multi directional barcode scanner

Syble XB-3080 Omnidirectional USB Scanner

Colour: Black/Red
1D Laser
Corded USB Interface
Corded USB 2M Cable

Performance Parameters

Light Source 650nm laser (high-intensity laser diode)

Decided Capability CODE128, EAN-13, EAN-8, Code 39, UPC-A, ISBN, GS1 Databar, Code 93, Code 128, Codabar, UCC/ EAN128, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI-pleasey, and all 1D codes

Scanning Method 20 lines laser
Scanning Speed 1500 scans per second
Scanning Angle 20 scan lines, 5 directional scanning
Scanning Precision 0.127mm (5mil) @ Code 39, PCS = 90%

Print Contrast >30% (UPC / EAN 100%)

Visual Indicator LED Buzzer

Supported Interface USB-HID, USB-COM, PS2, RS232

Physical Parameters

Dimensions 109mm x 96mm x 147mm
Weight 320g
Material ABS + PC Cable Length 2m Cable

Electronic Parameter

Input Voltage 5V DC
Operating Current 270mA
Environmental Parameter
Operating Temperature -20°C ~ 50°C
Operating Humidity 5% ~ 95% relative humidity, non-condensing
Storage Temperature -40°C ~ 70°C

Safe Standard

Laser Class CDRH class II, IEC 60825-1 class 1
EMC: CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI

Approval Certificates

ISO9001, RoHS, CE, FC
